Specifications
Breadcrumb
Product catalog

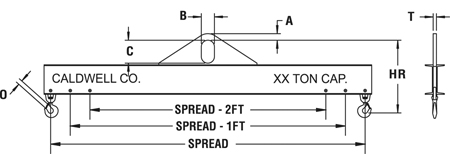

Specifications
Model Number
Capacity (tons)
Spread (ft)
A (in.)
B (in.)
C (in.)
T (in.)
O (in.)
HR (in.)
Weight (lbs)
20-1/2-3
1/2
3
7/8
3
5
3/4
7/8
12-3/4
40
20-1/2-4
1/2
4
7/8
3
5
3/4
7/8
12-3/4
50
20-1/2-6
1/2
6
7/8
3
5
3/4
7/8
12-3/4
65
20-1/2-8
1/2
8
7/8
3
5
3/4
7/8
12-3/4
95
20-1/2-10
1/2
10
7/8
3
5
3/4
7/8
13-3/4
140
20-1/2-12
1/2
12
7/8
3
5
3/4
7/8
13-3/4
160
20-1/2-14
1/2
14
7/8
3
5
3/4
7/8
14-3/4
230
20-1/2-16
1/2
16
7/8
3
5
3/4
7/8
15-3/4
305
20-1/2-18
1/2
18
7/8
3
5
3/4
7/8
16-3/4
400
20-1/2-20
1/2
20
7/8
3
5
3/4
7/8
16-3/4
450
20-1/2-24
1/2
24
7/8
3
5
3/4
7/8
20-1/4
830
20-1/2-30
1/2
30
7/8
3
5
3/4
7/8
22-1/4
1340
20-1-3
1
3
7/8
3
5
3/4
7/8
12-3/4
40
20-1-4
1
4
7/8
3
5
3/4
7/8
12-3/4
50
20-1-6
1
6
7/8
3
5
3/4
7/8
13-3/4
85
20-1-8
1
8
7/8
3
5
3/4
7/8
12-3/4
115
20-1-10
1
10
7/8
3
5
3/4
7/8
14-3/4
165
20-1-12
1
12
7/8
3
5
3/4
7/8
15-3/4
230
20-1-14
1
14
7/8
3
5
3/4
7/8
16-3/4
320
20-1-16
1
16
7/8
3
5
3/4
7/8
18-1/2
415
20-1-18
1
18
7/8
3
5
3/4
7/8
20-1/4
605
20-1-20
1
20
7/8
3
5
3/4
7/8
20-1/4
675
20-1-24
1
24
7/8
3
5
3/4
7/8
22-1/4
1095
20-2-3
2
3
7/8
3
5
3/4
7/8
13-3/4
50
20-2-4
2
4
7/8
3
5
3/4
7/8
13-3/4
65
20-2-6
2
6
7/8
3
5
3/4
7/8
13-3/4
100
20-2-8
2
8
7/8
3
5
3/4
7/8
16-1/2
165
20-2-10
2
10
7/8
3
5
3/4
7/8
17-1/2
230
20-2-12
2
12
7/8
3
5
3/4
7/8
18-1/4
315
20-2-14
2
14
7/8
3
5
3/4
7/8
20-1/4
480
20-2-16
2
16
7/8
3
5
3/4
7/8
20-1/4
540
20-2-18
2
18
7/8
3
5
3/4
7/8
24-3/4
800
20-2-20
2
20
7/8
3
5
3/4
7/8
24-3/4
900
20-2-24
2
24
7/8
3
5
3/4
/78
27-3/4
1730
20-3-3
3
3
1-1/4
3
5
1
1
15-1/4
70
20-3-4
3
4
1-1/4
3
5
1
1
15-1/4
80
20-3-6
3
6
1-1/4
3
5
1
1
16-1/4
140
20-3-8
3
8
1-1/4
3
5
1
1
17-1/4
200
20-3-10
3
10
1-1/4
3
5
1
1
18-1/4
275
20-3-12
3
12
1-1/4
3
5
1
1
22-1/2
415
20-3-14
3
14
1-1/4
3
5
1
1
24-1/2
650
20-3-16
3
16
1-1/4
3
5
1
1
24-1/2
1295
20-3-18
3
18
1-1/4
3
5
1
1
27-1/2
1295
20-3-20
3
20
1-1/4
3
5
1
1
27-1/2
1450
20-3-24
3
24
1-1/4
3
5
1
1
27-1/2
1765
20-5-3
5
3
2
4
7
1-1/4
1-15/16
19-1/2
115
20-5-4
5
4
2
4
7
1-1/4
1-15/16
20-1/2
145
20-5-6
5
6
2
4
7
1-1/4
1-15/16
21-1/2
205
20-5-8
5
8
2
4
7
1-1/4
1-15/16
25-1/2
325
20-5-10
5
10
2
4
7
1-1/4
1-15/16
25-1/2
390
20-5-12
5
12
2
4
7
1-1/4
1-15/16
27-1/2
580
20-5-14
5
14
2
4
7
1-1/4
1-15/16
27-1/2
690
20-5-16
5
16
2
4
7
1-1/4
1-15/16
30-1/4
1210
20-5-18
5
18
2
4
7
1-1/4
1-15/16
30-1/4
1340
20-5-20
5
20
2
4
7
1-1/4
1-15/16
30-1/4
1505
20-5-24
5
24
2
4
7
1-1/4
1-15/15
33-1/4
2275
20-7 1/2-3
7-1/2
3
2
4
7
1-1/4
1-1/2
22-1/2
135
20-7 1/2-4
7-1/2
4
2
4
7
1-1/4
1-1/2
23-1/2
170
20-7 1/2-6
7-1/2
6
2
4
7
1-1/4
1-1/2
25-1/4
265
20-7 1/2-8
7-1/2
8
2
4
7
1-1/4
1-1/2
27-1/4
415
20-7 1/2-10
7-1/2
10
2
4
7
1-1/4
1-1/2
27-1/4
500
20-7 1/2-12
7-1/2
12
2
4
7
1-1/4
1-1/2
30-1/4
910
20-7 1/2-14
7-1/2
14
2
4
7
1-1/4
1-1/2
30-1/4
1070
20-7 1/2-16
7-1/2
16
2
4
7
1-1/4
1-1/2
30-1/4
1210
20-7 1/2-18
7-1/2
18
2
4
7
1-1/4
1-1/2
33
1665
20-10-3
10
3
2
4
7
1-1/4
1- 9/16
23-1/4
150
20-10-4
10
4
2
4
7
1-1/4
1-9/16
25-1/4
205
20-10-8
10
8
2
4
7
1-1/4
1-9/16
27-1/4
420
20-10-6
10
6
2
4
7
1-1/4
1-9/16
27-1/4
335
20-10-10
10
10
2
4
7
1-1/4
1-9/16
30-1/4
775
20-10-12
10
12
2
4
7
1-1/4
1-9/16
30-1/4
910
20-10-14
10
14
2
4
7
1-1/4
1-9/16
30-1/4
1075
20-10-16
10
16
2
4
7
1-1/4
1-9/16
33
1500
20-10-18
10
18
2
4
7
1-1/4
1-9/16
33
1670
20-15-3
15
3
2-1/2
5
9
1-1/2
2-1/16
28-1/2
215
20-15-4
15
4
2-1/2
5
9
1-1/2
2-1/16
25-1/4
295
20-15-6
15
6
2-1/2
5
9
1-1/2
2-1/16
30-1/2
375
20-15-8
15
8
2-1/2
5
9
1-1/2
2-1/16
33-1/2
685
20-15-10
15
10
2-1/2
5
9
1-1/2
2-1/16
33-1/2
820
20-15-12
15
12
2-1/2
5
9
1-1/2
2-1/16
40-1/4
1180
20-15-14
15
14
2-1/2
5
9
1-1/2
2-1/16
40-1/4
1385
20-20-3
20
3
2-1/2
5
9
1-1/2
2-1/4
38-3/4
370
20-20-4
20
4
2-1/2
5
9
1-1/2
2-1/4
38-3/4
435
20-20-6
20
6
2-1/2
5
9
1-1/2
2-1/4
38-3/4
575
20-20-8
20
8
2-1/2
5
9
1-1/2
2-1/4
38-3/4
710
20-20-10
20
10
2-1/2
5
9
1-1/2
2-1/4
41-1/2
1070
20-20-12
20
12
2-1/2
5
9
1-1/2
2-1/4
41-1/2
1235
20-25-4
25
4
3
6
12
1-1/2
2-1/4
41-3/8
470
20-25-6
25
6
3
6
12
1-3/4
2-1/4
41-3/8
590
20-25-8
25
8
3
6
12
1-3/4
2-1/4
44-3/8
925
20-25-10
25
10
3
6
12
1-3/4
2-1/4
44-3/8
1100
20-25-12
25
12
3
6
12
1-3/4
2-1/4
44-3/8
1650
20-30-4
30
4
3-1/2
7
16
2
2-1/4
45-1/2
525
20-30-6
30
6
3-1/2
7
16
2
2-1/4
45-1/2
660
20-30-8
30
8
3-1/2
7
16
2
2-1/4
48-1/4
1010
20-40-4
40
4
3-1/2
7
16
2-1/2
3
44-3/4
600
20-40-6
40
6
3-1/2
7
16
2-1/2
3
47-3/4
930
