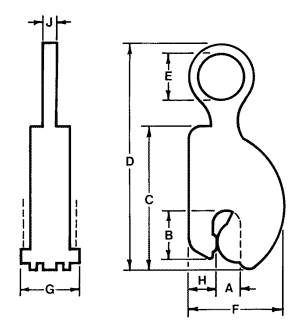

SPECIFICATIONS (in inches)
Rated
Capacity
Tons
Plate
Thickness
A
B
C
MAX.
D
E
F
G
H
J
Weight
(in pounds)
1/2
0-1
2 9/16
6 5/16
10 3/8
1 3/4
4 1/2
2 1/4
1 3/8
1/2
6
1
0-1 3/16
3 1/16
7 5/16
12 3/4
2 1/2
5 9/16
2 7/8
1 5/8
5/8
11
2
0-1 3/8
3 9/16
8 /16
14 1/2
3 1/8
6 9/16
3
2 1/4
5/8
16
4
0-13/4
3 7/8
10 3/4
17 3/4
3 3/8
7 7/16
3 7/8
2 1/4
3/4
27
7
1/4-2 1/2
5
12 3/4
22 1/2
3 7/8
9 5/8
5
3
1
65
SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE.
