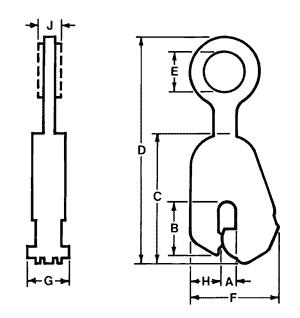

| Specifications | ||||||||||
| RATED CAPACITY TONS | PLATE THICKNESS | MAX | WEIGHT (LBS) | |||||||
| A | B | C | D | E | F | G | H | J | ||
| 1/2 | 0-3/4 | 2 13/16 | 7 | 11 1/4 | 2 3/8 | 4 5/8 | 2 1/2 | 1 1/2 | 1/2 | 8 |
| 1/2-1 | 2 13/16 | 7 | 11 1/4 | 2 3/8 | 4 7/8 | 2 1/2 | 1 1/2 | 1/2 | 8 | |
| 3/4-1 1/4 | 2 13/16 | 7 | 11 1/4 | 2 3/8 | 5 1/8 | 2 1/2 | 1 1/2 | 1/2 | 9 | |
| 1-1 1/2 | 2 13/16 | 7 | 11 1/4 | 2 3/8 | 5 3/8 | 2 1/2 | 1 1/2 | 1/2 | 10 | |
| 1 1/4-1 3/4 | 2 13/16 | 7 | 11 1/4 | 2 3/8 | 5 3/8 | 2 1/2 | 1 1/2 | 1/2 | 11 | |
| 1 | 0-3/4 | 3 3/16 | 9 | 13 3/4 | 2 5/8 | 5 7/8 | 3 3/16 | 1 5/8 | 5/8 | 14 |
| 1/2-1 | 3 3/16 | 9 | 13 3/4 | 2 5/8 | 6 1/8 | 3 3/16 | 1 5/8 | 5/8 | 15 | |
| 3/4-1 1/4 | 3 3/16 | 9 | 13 3/4 | 2 5/8 | 6 3/8 | 3 3/16 | 1 5/8 | 5/8 | 15 | |
| 1-1 1/2 | 3 3/16 | 9 | 13 3/4 | 2 5/8 | 6 5/8 | 3 3/16 | 1 5/8 | 5/8 | 16 | |
| 1 1/4-1 3/4 | 3 3/16 | 9 | 13 3/4 | 2 5/8 | 6 7/8 | 3 3/16 | 1 5/8 | 5/8 | 17 | |
| 1 1/2-2 | 3 3/16 | 9 | 13 3/4 | 2 5/8 | 7 1/8 | 3 3/16 | 1 5/8 | 5/8 | 18 | |
| 2 | 0-1 | 3 1/2 | 9 | 16 3/8 | 3 5/8 | 6 3/4 | 3 3/8 | 2 1/8 | 3/4 | 23 |
| 3/4-1 1/2 | 3 1/2 | 9 | 16 3/8 | 3 5/8 | 7 1/4 | 3 3/8 | 2 1/8 | 3/4 | 23 | |
| 1 1/4-2 | 3 1/2 | 9 | 16 3/8 | 3 5/8 | 7 3/4 | 3 3/8 | 2 1/8 | 3/4 | 23 | |
| 1 3/4-2 1/2 | 3 1/2 | 9 | 16 3/8 | 3 5/8 | 8 1/4 | 3 3/8 | 2 1/8 | 3/4 | 24 | |
| 3 | 0-1 1/4 | 4 3/16 | 10 3/4 | 18 3/8 | 3 5/8 | 7 5/8 | 3 9/16 | 2 7/16 | 3/4 | 30 |
| 3/4-1 1/2 | 4 3/16 | 10 3/4 | 18 3/8 | 3 5/8 | 7 7/8 | 3 9/16 | 2 7/16 | 3/4 | 31 | |
| 1 1/4-2 | 4 3/16 | 10 3/4 | 18 3/8 | 3 5/8 | 8 3/8 | 3 9/16 | 2 7/16 | 3/4 | 32 | |
| 1 3/4-2 1/2 | 4 3/16 | 10 3/4 | 18 3/8 | 3 5/8 | 8 7/8 | 3 9/16 | 2 7/16 | 3/4 | 33 | |
