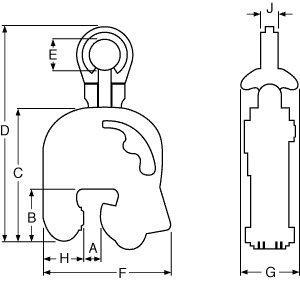

SPECIFICATIONS (in inches)
| Rated Capacity Tons |
Plate Thickness A |
B | C | MAX. D |
E | F | G | H | I | J | Weight (in pounds) |
| 1 | 0-3/8 | 2 5/8 | 7 3/4 | 14 | 2 3/8 | 4 3/4 | 5 1/2 | 1 1/2 | 5/8 | 3 | 16 |
| 0-3/4 | 2 5/8 | 7 3/4 | 14 | 2 5/8 | 5 1/8 | 5 1/2 | 1 1/2 | 5/8 | 3 | 18 | |
| 3/4-1 1/4 | 2 5/8 | 7 3/4 | 14 | 2 3/8 | 5 5/8 | 5 1/2 | 1 1/2 | 5/8 | 3 | 20 | |
| 1 1/4-1 3/4 | 2 5/8 | 7 3/4 | 14 | 2 3/8 | 5 5/8 | 5 1/2 | 1 1/2 | 5/8 | 3 | 24 | |
| 2 | 0-3/4 | 3 1/16 | 9 | 15 3/8 | 2 1/2 | 6 | 6 1/2 | 1 5/8 | 3/4 | 3 1/8 | 26 |
| 3/4-1 1/4 | 3 1/16 | 9 | 15 3/8 | 2 1/2 | 6 1/2 | 6 1/2 | 1 5/8 | 3/4 | 3 1/8 | 30 | |
| 1 1/4-1 3/4 | 3 1/16 | 9 | 15 3/8 | 2 1/2 | 7 | 6 1/2 | 1 5/8 | 3/4 | 3 1/8 | 34 | |
| 4 | 0-1 | 3 1/2 | 9 7/16 | 17 3/4 | 2 7/8 | 6 5/16 | 6 3/4 | 2 1/8 | 3/4 | 3 5/8 | 40 |
| 1-1 3/4 | 3 1/2 | 9 7/16 | 17 3/4 | 2 7/8 | 7 1/16 | 6 3/4 | 2 1/8 | 3/4 | 3 5/8 | 44 | |
| 1 3/4-2 1/2 | 3 1/2 | 9 7/16 | 17 3/4 | 2 7/8 | 7 13/16 | 6 3/4 | 2 1/8 | 3/4 | 3 5/8 | 48 | |
| 6 | 0-1 3/8 | 4 1/8 | 11 1/2 | 20 5/8 | 3 3/16 | 7 | 7 7/8 | 2 | 1 3/8 | 4 1/8 | 58 |
| 1 3/8-2 1/2 | 4 1/8 | 11 1/2 | 20 5/8 | 3 3/16 | 8 1/8 | 7 7/8 | 2 | 1 3/8 | 4 1/8 | 67 | |
| 2 1/2-3 5/8 | 4 1/8 | 11 1/2 | 20 5/8 | 3 3/16 | 9 1/4 | 7 7/8 | 2 | 1 3/8 | 4 1/8 | 66 | |
| SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE. | |||||||||||
