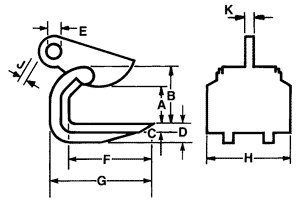

SPECIFICATIONS (in inches)
| Rated Capacity Tons |
Jaw Opening A |
B | C | D | E | F | G | H | J | K | Weight (in pounds) |
| 1/4 | 0-1 | 2 3/4 | 1/2 | + | 1 | 3 9/16 | 4 1/16 | 3 | 3/8 | 1/2 | 3 1/2 |
| 1/2 | 0-2 | 4 1/4 | 1/2 | + | 1 3/8 | 5 5/8 | 6 1/8 | 7 | 3/4 | 1/2 | 14 |
| 3/4 | 0-2 | 4 3/8 | 5/8 | + | 1 3/8 | 5 5/8 | 6 1/4 | 7 | 3/4 | 3/4 | 19 |
| 1 1/2 | 0-2 | 4 3/8 | 3/4 | + | 1 3/8 | 5 5/8 | 6 3/8 | 7 | 3/4 | 3/4 | 23 |
| 3 | 0-2 | 4 5/8 | 5/8 | 1 5/8 | 1 3/8 | 5 5/8 | 7 1/4 | 7 | 3/4 | 3/4 | 24 |
| 4 | 0-3 | 5 5/8 | 3/4 | 2 1/8 | 1 3/8 | 7 1/2 | 9 5/8 | 7 | 1 1/8 | 1 | 44 |
| SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE. + No backpad on 1/4, 1/2, 3/4 or 11/2 ton models. |
|||||||||||
